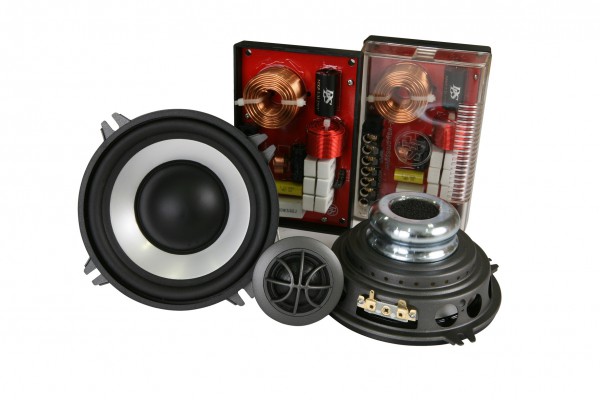

Ultimate series UP5i is a 13 cm (5,25″) 2-way component with aluminium cone.
- Powerful hybrid neodymium / ferrite magnet system.
- Two inch voice coil.
- Filter boxes with selectable tweeter level in four steps.
- 28 mm silk dome tweeter UP1i.

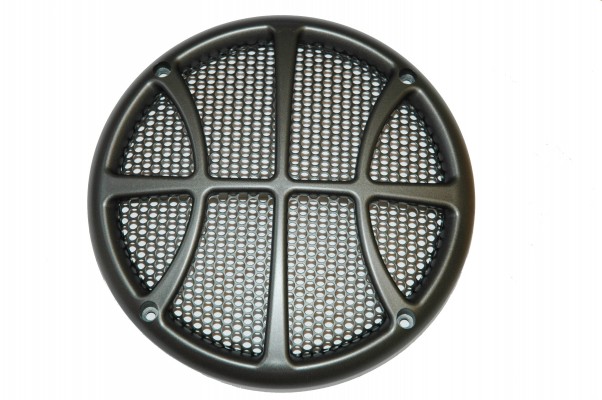

- Grilles are included.
| Specifications |
| Woofer size | 13 cm (5,25″) |
| Tweeter | UP1i – 28 mm silk dome tweeter |
| Power handling capacity | 120 W RMS / 180 W max |
| Impedance | 4 ohm |
| Frequency range | 60 – 20 000 Hz |
| Sensitivity | 89 dB /(1W/1m) |
| Crossover | Box filter with slope LP: 6dB, HP: 12 dB |
| Crossover point (Hz) | 5000 Hz |
| Size of filter box | 145 x 95 x 45 mm ( 5,71 x 3,74 x 1,77″) |
| Outer diameter of woofer | 130 mm (5,12″) |
| Magnet size | 62 mm (2,44″) hybride ferrit / neodymium |
| Mounting depth | 58 mm (2,28″) |
| Mounting hole | 120 mm (4,72″) |
